- 80 GHz technology for reliable and maintenance-free operation
- Rugged PVDF antenna and enclosure for corrosive liquid.
- IP68 rated sensor for harsh outdoor or below grade installations
- Measures level & Distance.
- Minimum dead band maximizes the potential fill capacity of small tanks
- Configuration via HART Server.

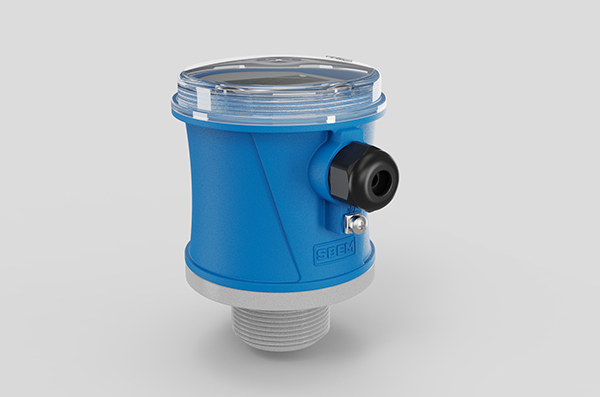

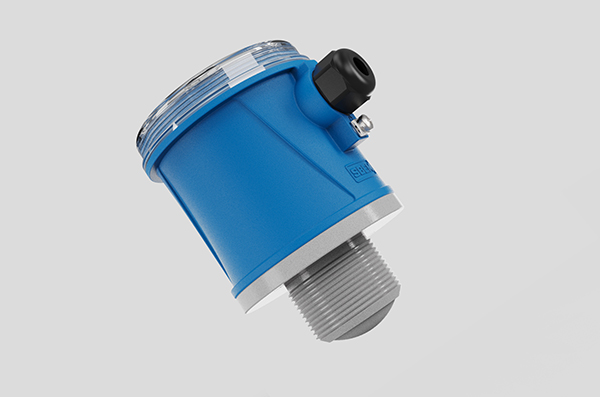

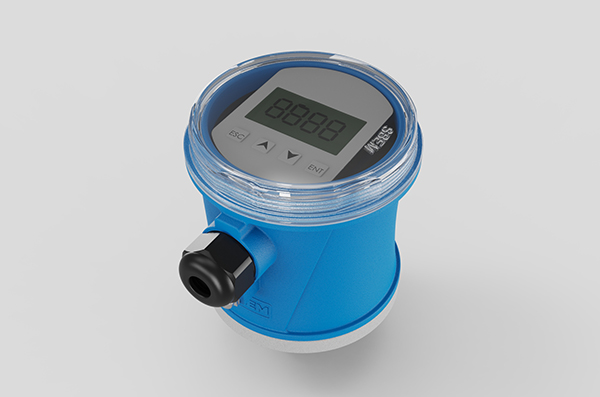

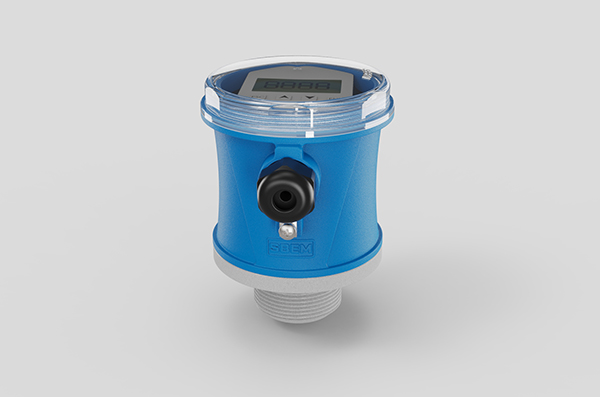

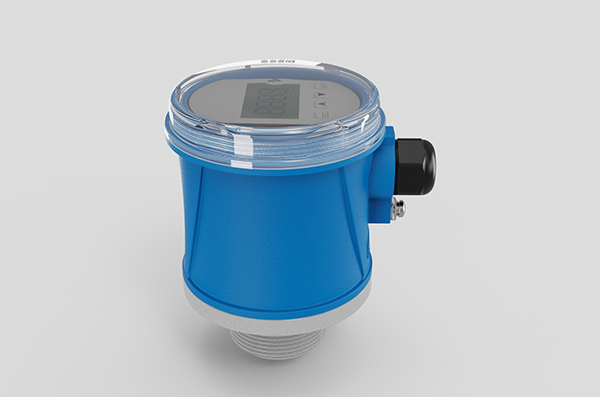

The 138 W52 Radar Level Transmitter is a highly reliable, user-friendly non-contact sensor designed for accurate level measurement. Using advanced 80 GHz radar technology, it provides consistent performance regardless of the liquid or solid being measured, as well as the surrounding environment. With an accuracy of ±5mm and an 8° beam angle, it operates within a temperature range of 0°C to 60°C. This two-wire transmitter offers a 4-20mA + HART output for seamless integration into your system.
-
Features
-
Specification
Parameter Name Parameter Description Operating Frequency 80 GHz Measuring Ranges 10m, 15m, 30m Blind Zone 150mm Display Version With Display Beam angle 8° Installation method Threaded & Slip On Flange Threading Type 1 1/2″ BSP Threaded Slip on Flange Type 2″/ 2 1/2″/3″/4″/5″/6″ ANSI 150# Accuracy ±5mm Power Supply 24 VDC @ 30mA Analog Output 2 Wire, 4-20mA @500Ω load Communication O/P Not Applicable / HART (Optional) Antenna type Lens antenna Housing Enclosure PP Antenna / Sensor Material PP Flange Material PP Process Temperature 0 to 60°C Process Pressure Atmospheric Protection class Standard IP 67 / IP68 on Request Humidity ≤ 95%RH Operating Temperature 0 to 60°C -
Application
- Water reservoirs
- Water Level Measurement – Rivers, Lakes, Channels, Reservoirs, Sinks
- Fresh Water Tanks
- Hydrological Application
- Irrigation System
- Water resources Development
- Drinking Water
- Water Distribution
-
