AquaLink

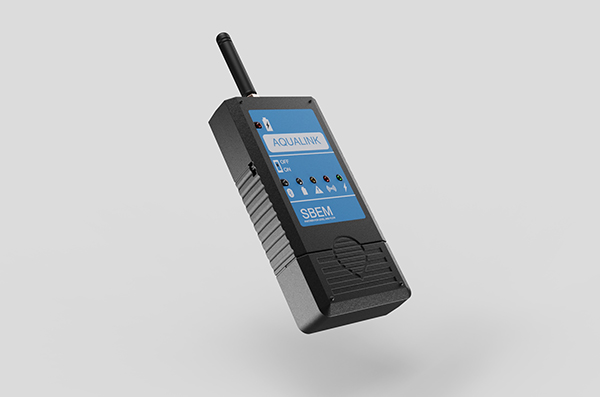

The SBEM Interface Radio Device (Aqualink) is a compact, cost-effective radio modem that enables transparent communication between Aquasonic Residential Water Meters (153 RWM) and Smart mobile devices. Designed to replace bulky, integrated handheld units. AQUALINK leverages LoRa technology and the 865 MHz license-free ISM band for wireless data exchange. The RWM acts as an end node, periodically transmitting meter data via sub-GHz RF band, which is received by AQUALINK. The device then forwards this data to a SBEM RWM mobile application using a Bluetooth serial communication protocol. Equipped with a rechargeable battery. AQUALINK supports bi-directional communication receiving or transmitting data from the 153 RWM over RF and interfacing with SBEM’s mobile application via Bluetooth. This setup enables efficient, real-time automatic meter reading and monitoring without the need for specialized handheld terminals.

  • Features
    • Reliable Data Transmission
    • LED Indication available
    • Low Power Consumption
    • Wireless Connectivity
    • Seamless Integration
  • Specification
    Parameter Description
    Power Supply 3.6V rechargeable inbuilt battery
    Charger Type 5.1V / 2A
    USB cable Micro USB Type B (USB 2.0) for charging
    Switch Power On / Power Off
    RF Communication Sub-GHz (865 MHz ISM band), LoRa modulation, 0 dBm, ~100 meters range
    Protocol MQTT-SN encapsulated in LoRa payload
    Frequency Configuration Received: 865.0625 MHz (CH0),
    Transmitted: 866.55 MHz (fixed); 4 configurable channels
    Bluetooth Interface Class II (10 m range, 2.5 mW), Serial profile, onboard antenna
    Input Signals RF (from I53 RWM via LoRa), Bluetooth (from SBEM I53 Mobile App)
    Output Signals RF signal to I53 RWM (bi-directional communication)

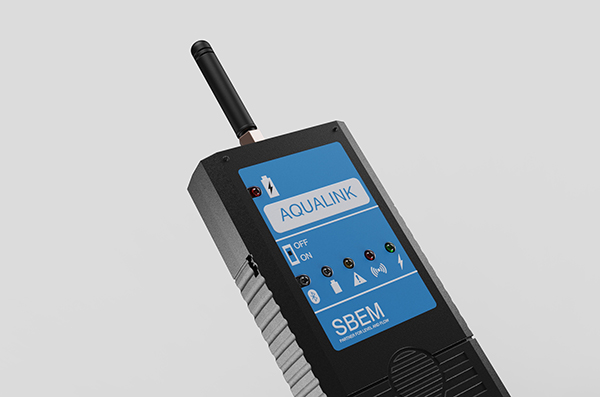

    LED Indicators Red: Charging / RF Received,
    Blue: Bluetooth Status,
    Green: Power,
    Yellow: Error
    Modem Type LoRa chirp signal, ISM Band (IN-865 Hz); also supports 868 & 915 MHz

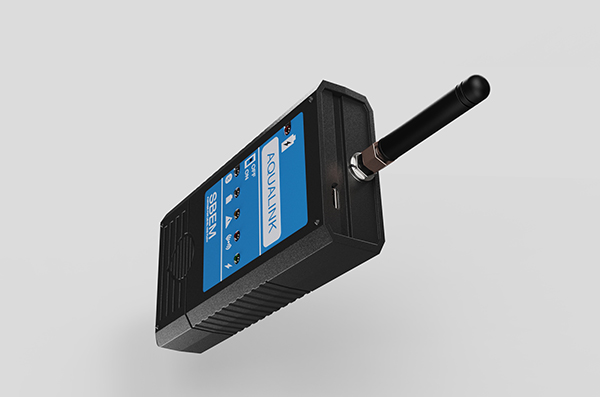

    Antenna 868 MHz LPWA/ISM SMA antenna, 2 dB gain, 50 Ω; optional magnetic base for drive-by
    Material Plastic
    Ingress Protection IP54 (suitable for indoor/outdoor installation)
    Operating temperature: -40°C to +85°C
    Storage Temperature: -40°C to +90°C
    Relative Humidity: Suitable for outdoor
    Operating Pressure: Atmospheric
  • Application
    • Data Collection for AMR Meter
