151 MFM – E

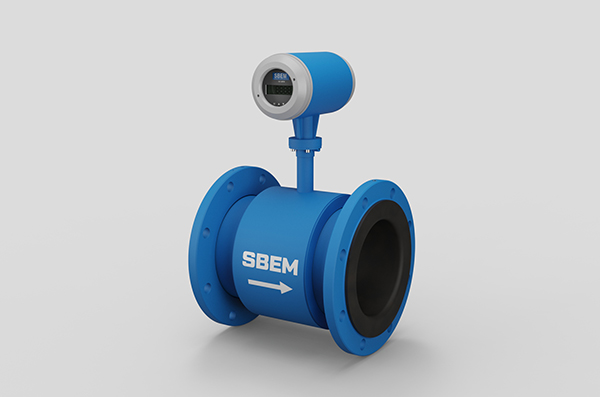

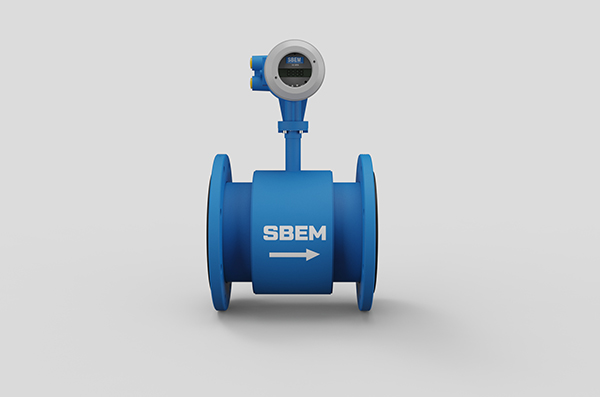

The 151 MFM-E Electromagnetic Flow Meter by SBEM delivers superior accuracy of ±0.3% and repeatability, designed to meet demanding industrial standards. Suitable for conductive liquids with minimum conductivity of 20 μS/cm, this model supports nominal pipe sizes from 15 to 3000 mm and operates under pressures up to 16 Kg/cm². Built with corrosion-resistant materials including SS316 and optional tantalum electrodes, the 151 MFM-E ensures long-term reliability and stable measurement under extreme temperatures up to 150°C. Its user-friendly two-line backlit LCD and extensive communication capabilities—MODBUS, HART, and data logging—enable seamless integration into global process control systems. The device is widely applied in sectors such as thermal power, chemical, and naval engineering, reinforcing SBEM’s commitment to precision flow instrumentation.

  • Features
    • Maximum Range (Velocity): 15 m/s.
    • Meter Sizes: 15 to 2000 mm.
    • Process Connection: Flange [ANSI/AWWA/DIN] & Wafer.
    • Electrode Material: SS/Hastalloy C/Tantalum/Titanium.
    • Lining: Rubber/Neoprene/Hard Rubber/PTFE/Polyurethane.
    • Measuring Tube Material: SS304/SS316.
    • Coil Housing Material: CS/SS304/SS316.

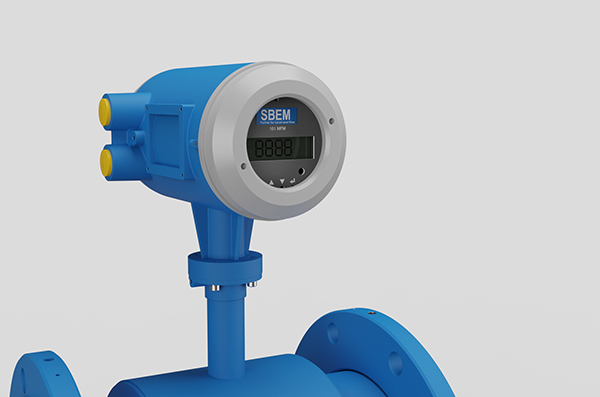

    • Two line * 16 characters LCD display.
    • Integral & Remote versions.
    • Bidirectional Flow Measurement.
    • Built In Self Diagnosis Feature.
    • Empty Pipe Detection.
    • Weights & Measures approval.
    • Protection Class: Sensors – IP 67 [std] / IP 68 [For remote versions only], Indicator-Converter – IP 67
    • Interchangeable Converter.
    • Optional Earthing Rings.
    • Low Power Consumption.
  • Specification
    Nominal internal Diameter DN (mm) 15 to 2000
    Working Pressure 6 Kg/cm2 or 10 Kg/cm2 or 16 Kg/cm2
    Ambient Temperature -10 °C to +55 °C
    Electrode Material Std.-Stainless Steel SS316;Optional – SS316L,HastealloyC, Titanium or Tantalum
    Conductivity of measured liquid >= 20 micro S/Cm
    Sensor Lining Rubber/Neoprene/Hard Rubber/PTFE/Polyurethane
    Display version Integral or Remotely mounted
    Measuring Tube Material Std. – SS 304, Optional – SS 316
    Sensor Housing Material Std. – CS, Optional – SS 304/SS 316
    End connection Flanged [ANSI/AWWA/DIN] & Wafer
    Measuring Range Up to 15 m/s
    Accuracy +/- 0.3% of flow.
    Repeatability +/- 0.1%
    Display Two line * 16 characters LCD display.
    5 digit Instantaneous flow & 9 digit – Total flow
    Displayed units Totalized flow: m3,L
    Instantaneous flow: m3/hr, m3/min, m3/sec, L/hr, L/min, L/sec
    Outputs Std. Current 4 to 20 mA, Frequency[0 to 5000 Hz] / Pulse[0.001 to 1 m3]
    Optional – RS232[MODBUS RTU]/RS485[MODBUS RTU]/HART
    1 digital output (configurable)
    Power Supply Std. 85 to 265 VAC, 45 to 65 Hz or
    Optional – 24 VDC
    Protection Class Sensors – IP 67 [std] / IP 68 [For remote versions only], Indicator-Converter – IP 67
    Cable Length [For remote version] 10 m [Std.]/Additional on request. Maximum cable length up to 300 m.
  • Application
    • Bi-directional flow measurement in process, cement industry / power plants.
    • Flow measurement in 24*7 water distribution networks.
    • Custody Transfer Accuracy Flow Measurement.
