151 MFM – W

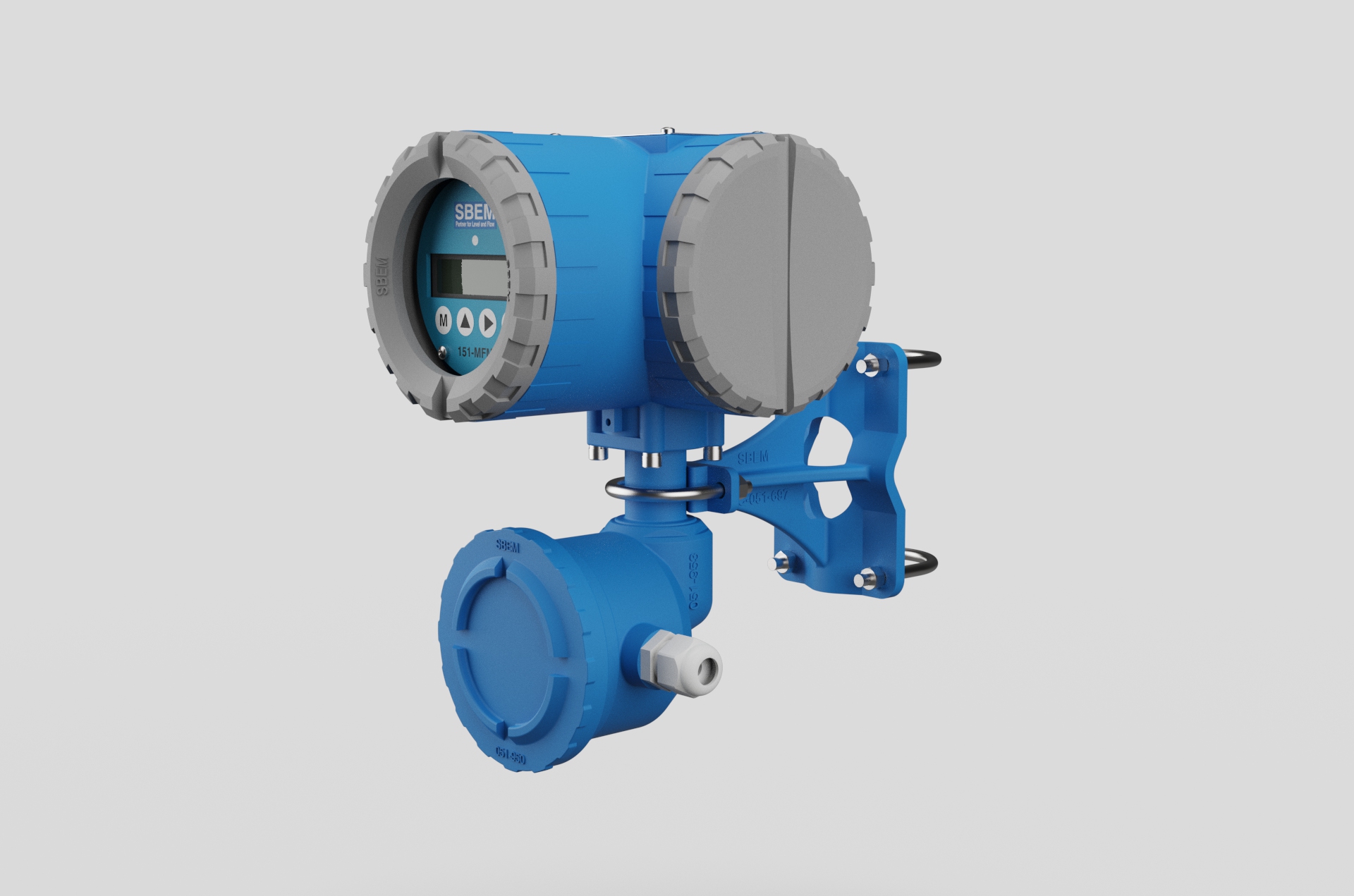

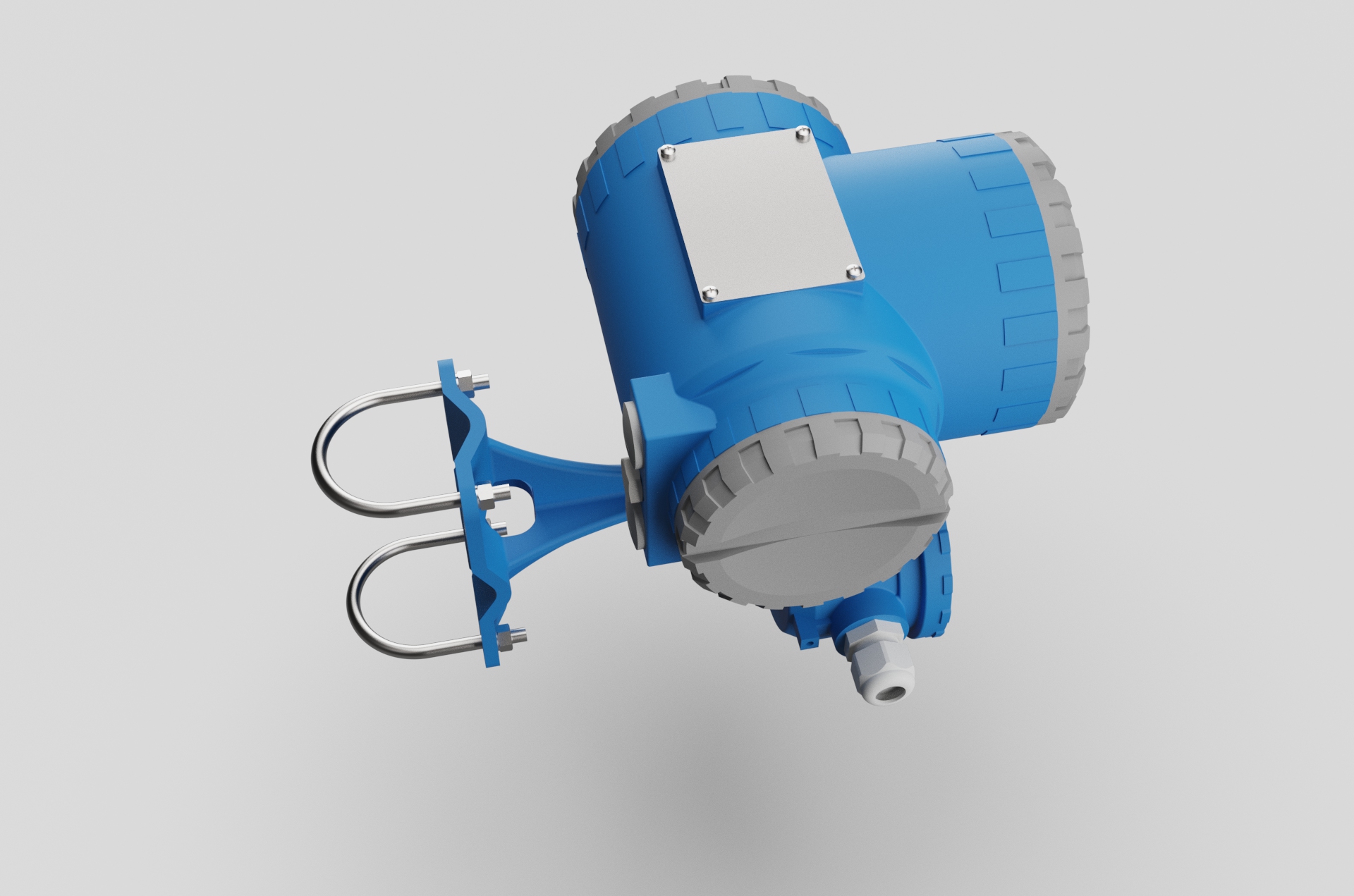

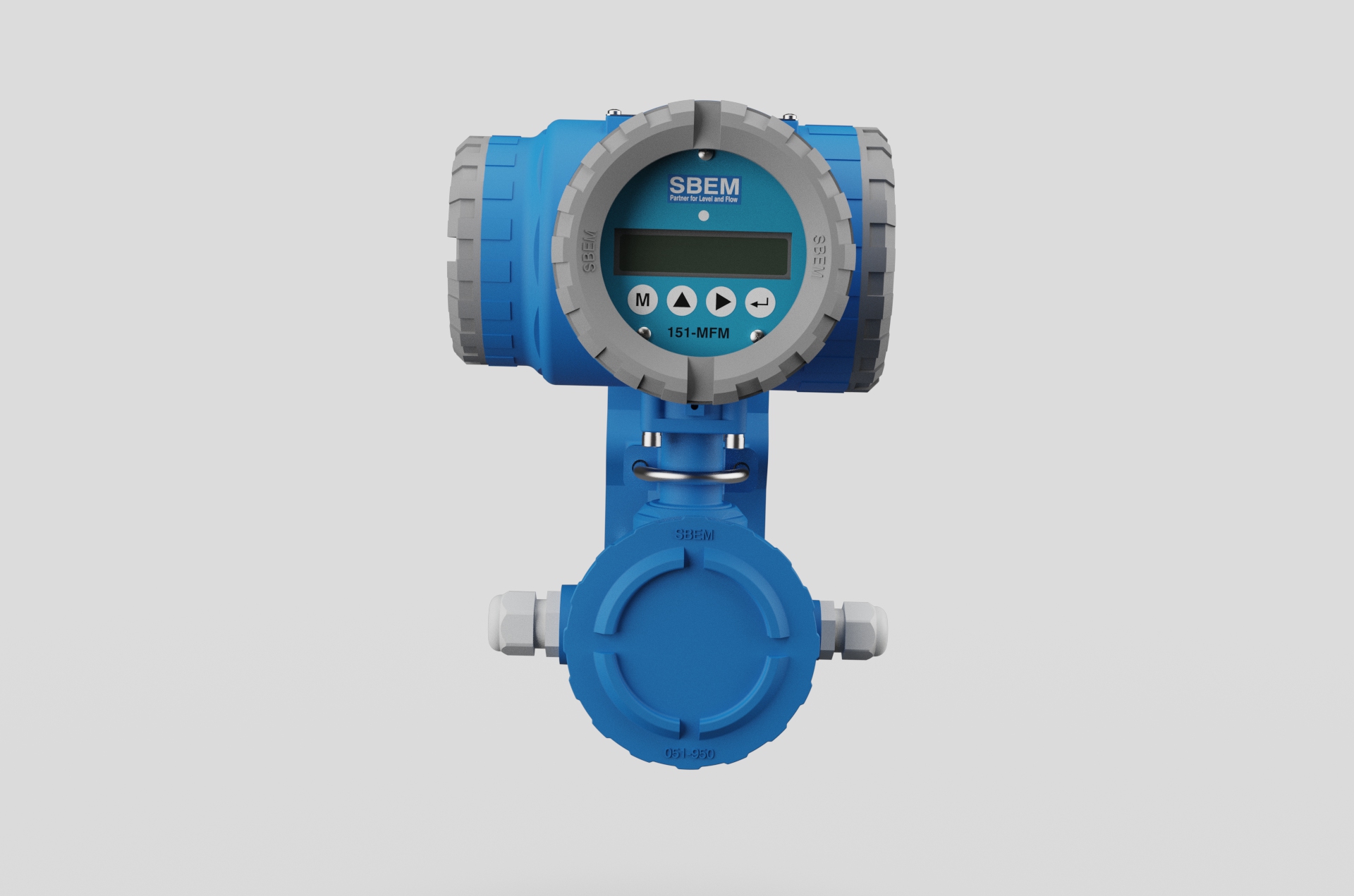

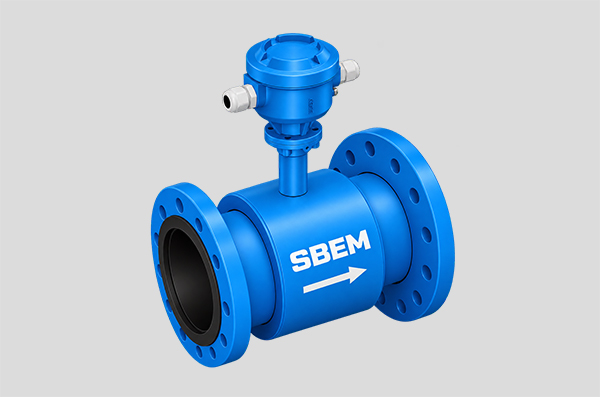

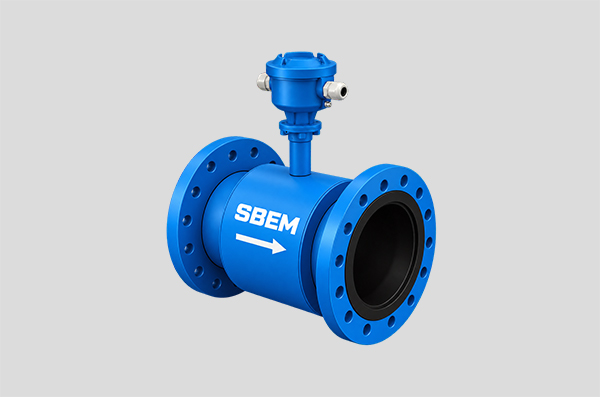

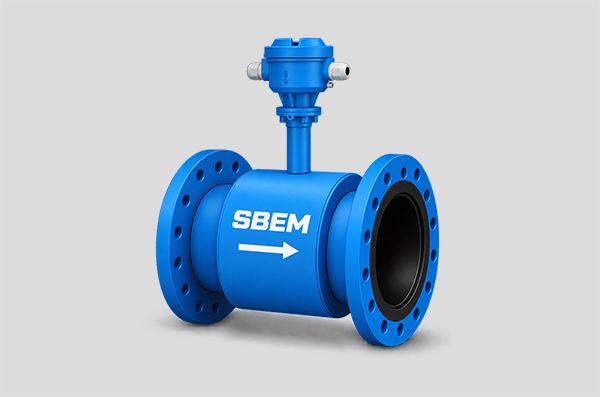

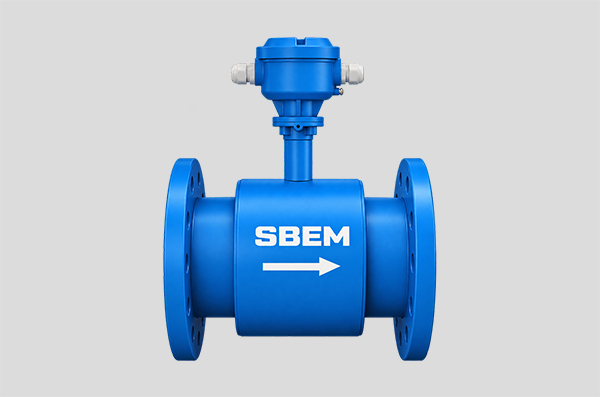

SBEM’s 151 MFM-W Electromagnetic Flow Meter is engineered for industrial precision with an accuracy of ±0.5%, supporting large diameter pipes from 15 mm up to 3000 mm and flow velocities up to 15 m/s. Constructed with stainless steel and high-grade electrode materials such as Hastelloy C and Titanium, the 151 MFM-W features a rubber or PTFE lining to ensure chemical resistance and durability. Equipped with dual-line LCD or graphical display and MODBUS-compatible digital outputs, this model offers versatile connectivity options, including HART and GSM/GPRS interfaces for real-time data transmission and SCADA integration. Its rugged IP67/IP68 rated construction and advanced features like empty pipe detection make it ideal for water treatment, petrochemical, and pharmaceutical industries globally, enhancing operational efficiency and process automation.

  • Features
    • Maximum Range (Velocity): 15 m/s.
    • Meter Sizes: 15 to 2000 mm.
    • Process Connection: Flange [ANSI/AWWA/DIN] & Wafer.
    • Electrode Material: SS/Hastalloy C/Tantalum/Titanium.
    • Lining: Rubber/Neoprene/Hard Rubber/PTFE/Polyurethane.
    • Measuring Tube Material: SS304/SS316.
    • Coil Housing Material: CS/SS304/SS316.
    • Two line * 16 characters LCD display.
    • Integral & Remote versions.
    • Bidirectional Flow Measurement.
    • Built In Self Diagnosis Feature.
    • Empty Pipe Detection.
    • Protection Class: Sensors – IP 67 [std] / IP 68 [For remote versions only], Indicator-Converter – IP 67
    • Interchangeable Converter.
    • Optional Earthing Rings.
    • Low Power Consumption.
  • Specification
    Nominal internal Diameter DN (mm) 15 to 2000
    Working Pressure 6 Kg/cm2 or 10 Kg/cm2 or 16 Kg/cm2
    Ambient Temperature -10 °C to +55 °C
    Electrode Material Std.-Stainless Steel SS316;Optional – SS316L,HastealloyC, Titanium or Tantalum
    Conductivity of measured liquid >= 20 micro S/Cm
    Sensor Lining Rubber/Neoprene/Hard Rubber/PTFE/Polyurethane
    Display version Integral or Remotely mounted
    Measuring Tube Material Std. – SS 304, Optional – SS 316
    Sensor Housing Material Std. – CS, Optional – SS 304/SS 316
    End connection Flanged [ANSI/AWWA/DIN] & Wafer
    Measuring Range Up to 15 m/s
    Accuracy +/- 0.5% of flow.
    Repeatability +/- 0.2%
    Display Two line * 16 characters LCD display.
    5 digit Instantaneous flow & 9 digit – Total flow
    Displayed units Totalized flow: m3,L
    Instantaneous flow: m3/hr, m3/min, m3/sec, L/hr, L/min, L/sec
    Outputs Std. Current 4 to 20 mA, Frequency[0 to 5000 Hz] / Pulse[0.001 to 1 m3]
    Optional – RS232[MODBUS RTU]/RS485[MODBUS RTU]/HART
    1 digital output (configurable)
    Power Supply Std. 85 to 265 VAC, 45 to 65 Hz or
    Optional – 24 VDC
    Protection Class Sensors – IP 67 [std] / IP 68 [For remote versions only], Indicator-Converter – IP 67
    Cable Length [For remote version] 10 m [Std.]/Additional on request. Maximum cable length up to 300 m.
  • Application
    • Bi-directional flow measurement in process, cement industry / power plants.
    • Flow measurement in 24*7 water distribution networks.
