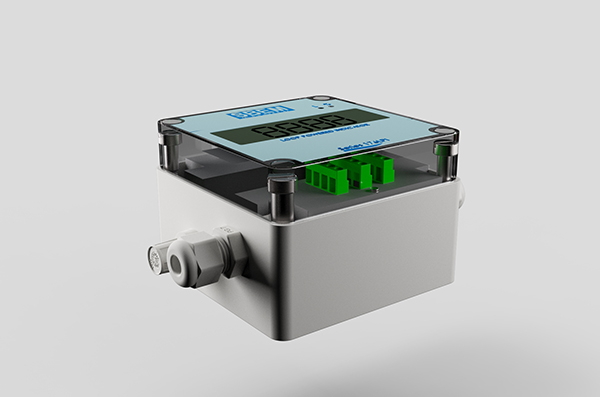

176 LPI Loop Power Indicator

The 176 LPI indicators are designed for fast and accurate Level measurement. The instrument is designed using highly reliable electronic components. The indicator is displayed directly in digits, which gives better resolution compared to analog indicator. The 176 LPI instrument is immune to mechanical vibrations. Even the mounting position will not affect the measurement accuracy. The large bright LED display allows long distance readability.

  • Features
    • Proven trouble free field performance
    • Highly compact
    • Dust and vermin proof enclosure with epoxy powder coating
    • LED display gives better readability at long range
    • Fast response time
    • Maximum MTBF and minimum MTTR
    • Wide supply variation and environmental band
    • Provision for retransmission output.
  • Specification
    Parameter Name Parameter Description
    Typical Application Water Level Measurement of Rivers, Lakes, Channels, Reservoirs, Sinks, / Hydrological Application
    Input 2 Wire, 4-20mA

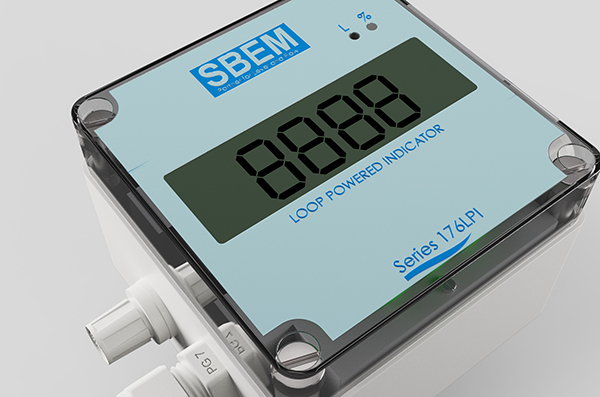

    Display Version LED Type – 8 X 1 Alfa numeric LED Display
    Display Range Programmable 0 to 99999
    Character Size 4.5 (W) X 8 (H)mm
    Programming using 2 keys membrane Keypad
    Power Supply 24VDC Loop Powered
    Accuracy ±0.25% of FSD ±1 Digit
    Accuracy Deviation To
    • Temperature Changes : ±0.02% or °C, ref. at 25°C
    • Supply Variation: ± 0.01% or V Recalibration (if required)
    Maximum Voltage drop 2.5V
    Input load Resistance 50Ω
    Current consumption less than 3 mA
    Housing Enclosure ABS

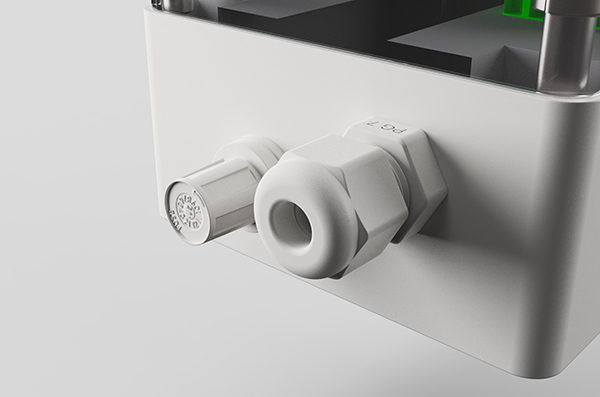

    Cable Glands 2 Nos.
    Temperature 0 to 55°C
    Protection class IP65
    Mounting 2” Pipe or wall Mounting
    Weight ~ 500 Grams
