| Input | 4 – 20 mA DC (3.6E resistance) |
| Optional Relay Output | Up to 4 Nos. Potential free relay contact, max up to 2, rated 5 A |
| Optional Current Output | 4 – 20 mA @ 600 E |
| Optional Communication | MODBUS RTU, RS 232/ RS 485 output |
| Display | 4 Digit, Red LED, 12.5 mm |
| Range | Standard: 0 – 100% Optional: To be specified by Customer (-1999 to 9999) |
| Accuracy | ±0.1% of span, ±1 digit |
| Power Supply | 110 VAC, ±10%, 50 Hz OR 230 VAC, ±10%, 50 Hz |
| Ambient Temperature | 0 to 50°C |
| Transmitter Supply | 24 VDC, ±0.1 V @ 50 mA |
| Dimensions | Front Fascia: 96 X 96 mm Cut Out: 92 X 92 mm Depth: 110 mm |
| Mounting | Panel Mounting |
| Ingress Protection | IP55 (For Front Fascia only) |

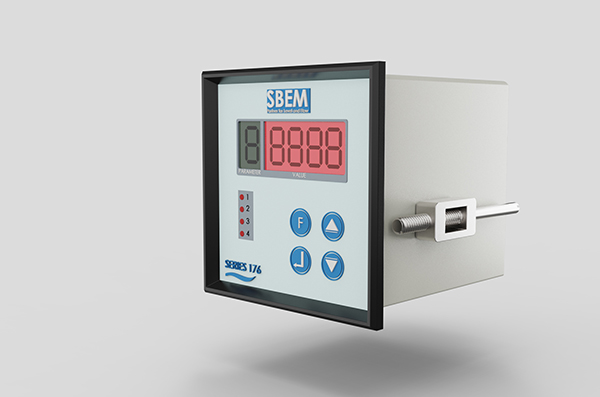

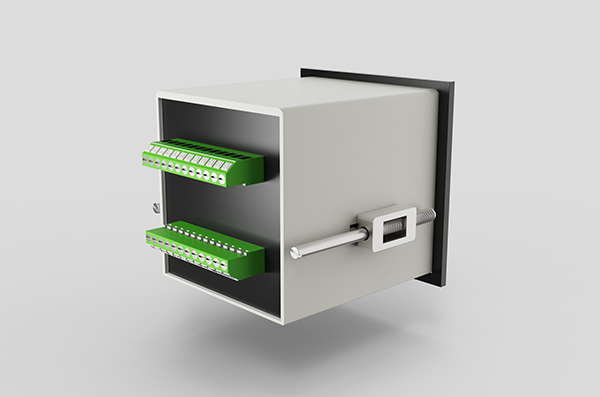

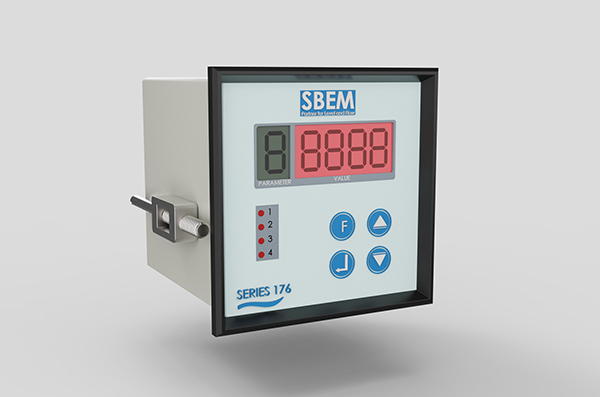

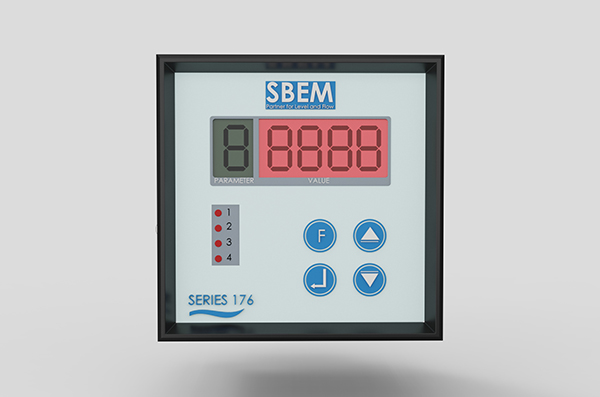

Digital Process Indicators play an important role in Process Industries. 176 Digital Process Indicators accepts 4-20 mA input. It is a Control Room Instrument and provides Remote Indication of the signal transmitted by SBEM two wire Transmitters such as 103 CLT, 103 HPT, 104 ROF, 104 LOH, 136 ULT, etc. It is a Microcontroller based programmable Indicator designed for accurate measurement/ control. It has an inbuilt 24 VDC Power Supply that can be used as Transmitter Supply.
-
Specification
-
Application
176 Digital Process Indicators can be used for remote indication of level ,flow, etc proportional to the signal transmitted by SBEM transmitters mounted in the field such as 103 CLT-Capacitance level Transmitter, 103 HPT- Hydrostatic Pressure Transmitter, 104 ROF -Rate of Flow Indicator Transmitter, 104 LOH -Loss of Head Indicator Transmitter , 136 ULT – Ultrasonic Level Transmitter, etc.
-
