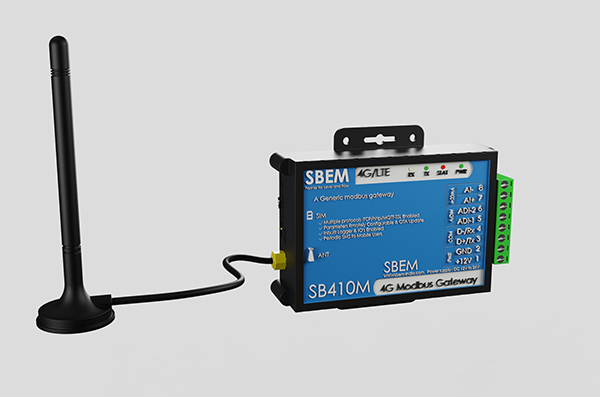

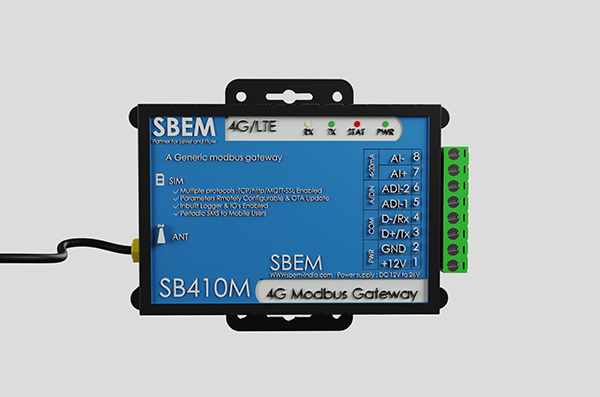

200-SB410M

Our smart SB410M modbus/RTU/IO to 4G gateway expands your data communication over wireless networks by 4G/LTE gateway with secure and two-way communication, without in depth knowledge like AT commnads and protocol concepts. The device collects data from a variety of Modbus Slaves & Sensors, and sends to the centralized server or cloud server with our 4G Lite features. The gateway supports multiple protocols like GSM & GPRS etc. The easy transition of Wired Network to Wireless Communication using Modbus RTU to 4G Lite Gateway with a simple and cost-effective solution.

  • Features
    • Intelligent Modbus, IO, datalogger, GPRS/ 4G/LTE connectivity management.
    • 1 x RS 485 port for Modbus, 1 x USB port for utility configuration.
    • Configurable multiple Slave IDs, Selectable Address Range.
    • RS485 Transparent or modbus polling – Formatted as (ASCII/HEX)
    • Datalogger during Server/ network disconnection.
    • Authorized number list for commanding.
    • Remote configuration through SMS/FTP/TCP Utility Server/IP commands.
    • Only data logger version available.
    • Power Failure, shutdown, IO Alerts with optional Battery.
    • Can act as Modbus to 4G gateway or Transparent Modbus gateway.
  • Specification
    PARAMETERS SPECIFICATIONS
    Network Support 2G/3G/4G / LTE
    Operating Voltage 12 VDC to 26 VDC
    Current consumption 40 mA @ 12 V standby & 100mA @ 12 V peak
    Operating temperature -20° C to 85° C
    Input port (ADI 1 & ADI 2) 2 channel (0 to 24 V) analog / Digital input
    Analog port (AI) 1 channel 4 to 20mA DC
    Protocols GSM (SMS) and/or GPRS. Data formats: .csv, .json etc.
    RS 485 (std. modbus) 8 modbus and slave device
    Memory (no. of records) 17000

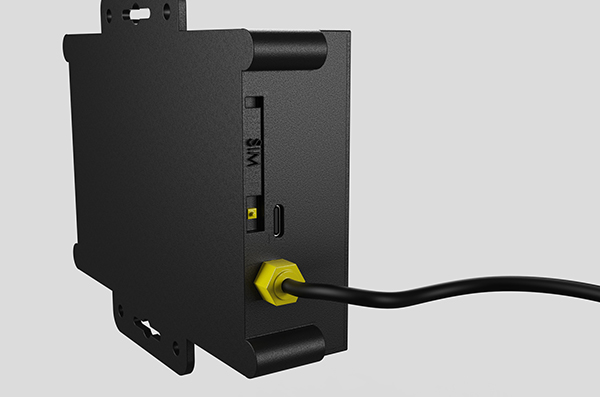

    Serial Port USB port for device configuration on PC utility.
    Serial Interface RS232 or RS485
    Baud Rate 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps
  • Application
    • Level readings of 136-ULT, 138-Radars etc.
    • Flow velocity, Flow rate & Totalizer readings of 151-MFM, 153-UCW/UTW, 191-FIT etc.
    • Panel tampering detection.
    • Power fail detection.
    • Battery voltage monitoring.
    • 176 process indicator reading.
    • Pump control, energy monitoring.
    • Pulse counting.
