- Microprocessor based
- Proven trouble-free field performance.
- Highly compact
- Highly accurate
- Dust proof enclosure with epoxy powder coating
- LCD display gives better readability at long range
- Fast Response time.
- Designed for 4-20 mA input
- User friendly programming
- Wide supply variation
- RS 232/RS 485 MODBUS RTU protocol optional
- Immune to mechanical vibrations
- Panel mounted in Safe Area

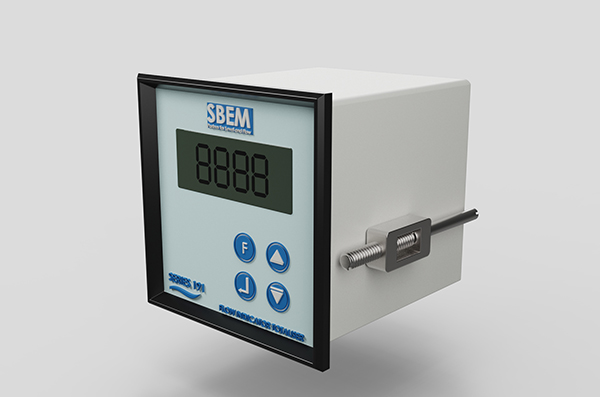

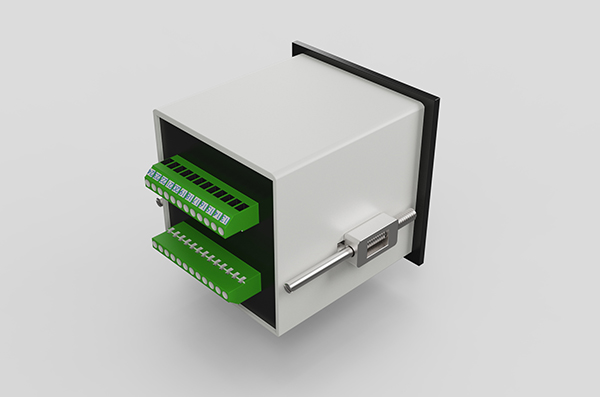

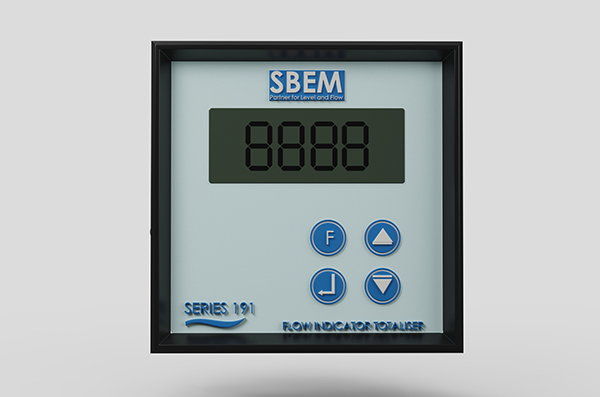

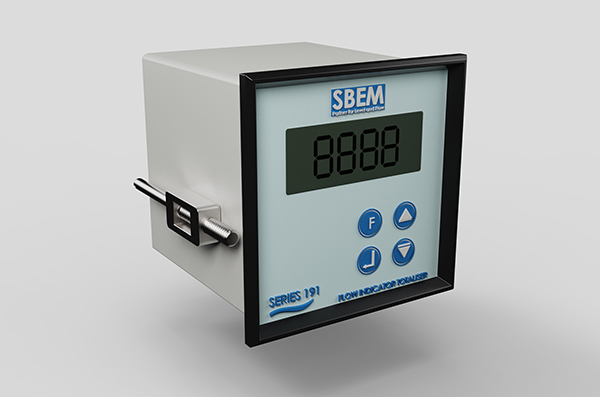

Flow Indicator Totaliser, Series 191 accepts a 4-20 mA signal proportional to Rate of Flow from a flow sensor or rise of head in an open channel flowmeter. Any of the following Instruments can be used for obtaining rate of flow. 1.Rate of Flow Indicator-Transmitter, 104 ROF 2.Ultrasonic Level Transmitter ,ULTRAMATE 136 ULT. The Rate of Flow and Cumulative Flow are displayed simultaneously.
-
Features
-
Specification
Input 4 – 20 mA DC Optional Relay Output 1 No. Potential free relay On Flow contact max up to 2, rated 5 A Optional Relay Output (Totaliser Flow) 1 No. Potential free relay On Totaliser Flow contact max up to 2, rated 5 A Optional Current Output 4 – 20 mA @ 600 Ω Optional Communication MODBUS RTU, RS 232 / RS 485 output Display 16 X 2 Character LCD Backlit Range Standard: 0 – 100 %
Optional: To be specified by Customer (-1999 to 9999)Accuracy ± 0.1 % of span, ± 1 digit Power Supply 110 VAC, ± 10 %, 50 Hz OR 230 VAC, ± 10 %, 50 Hz Ambient Temperature 0 to 50°C Transmitter Supply 24 VDC, ± 0.1 V @ 30 mA Dimensions Front Fascia (mm): 96 X 96
Cut-out (mm): 92 X 92
Depth (mm): 110 -
