151 MFM – P

The 151 MFM Prime Electromagnetic Flowmeter accurately measures volumetric flow of electrically conductive liquids (≥20 µS/cm) in flow systems. It supports bidirectional measurement and ensures high accuracy across a wide flow range, including slurry and partial flow applications.

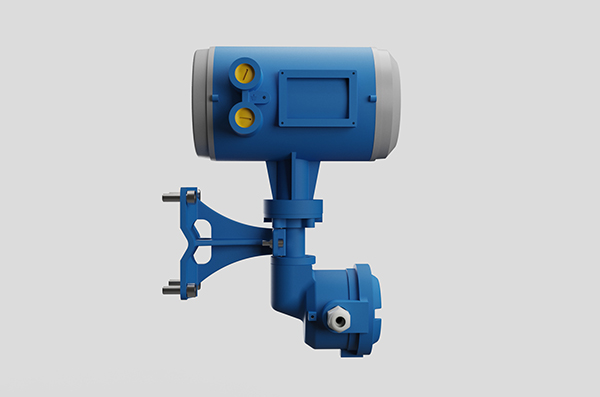

The converter features a backlit display and keypad for real-time data visualization and parameter configuration. Outputs include 4 – 20 mA current, frequency/pulse, and digital signals. An optional W&M (OIML) approval is available for legal metrology compliance with certified measurement accuracy.

  • Features
    • Low Power Consumption
    • Built in Self-diagnosis Feature
    • Interchangeable Converter
    • Remote Sensor Suitable for Submerged / Burried Condition
    • Specialised Converter for Partial Flow & Slurry Application
    • No Pressure Loss
    • Low Maintenance
    • Higher Accuracy
    • W&M (OIML) Model Approved
  • Specification
    Specification Details
    Sensor Size DN 15 to DN 3000
    Accuracy 1 ±0.3% of Measured Flow
    Repeatability ±0.1% (At Constant Flow)
    Measuring Range Up to 15 m/s
    Conductivity of Measured Liquid ≥20µS/cm
    Power Supply Standard: 85 to 265VAC, 45 to 65Hz or Optional: 24VDC
    Model Types Integral Type or Remotely Type
    Display Graphical LCD
    Displayed Units Totalised Flow: m3, L
    Instantaneous Flow: m3/hr, m3/min, m3/sec, L/hr, L/min, L/sec
    4-20mA Current Output Available (Frequency: 0 to 5000Hz) /
    1 No. Relay Pulse: (0.001 to 1 m3)
    Communication Interface RS485 (Modbus RTU) or HART
    Electrode Material Standard: SS316, Optional: SS316L / Hastelloy C / Titanium / Tantalum
    Sensor Lining Rubber / Teflon (PTFE) / Hard Rubber / Neoprene / Polyurethane
    Measuring Tube Material Standard: SS304, Optional: SS316
    Sensor Housing Material Standard: CS, Optional: SS316 / SS304
    End Connection Flanged (ANSI / DIN / AWWA) or Wafer
    Working Pressure 6 Kg/cm2 or 10 Kg/cm2 or 16 Kg/cm2
    Ambient Temperature -10°C to 55°C
    Protection Class For Remote Version: Sensor – IP67 (Std) / IP68 (Optional), Converter – IP67
    For Integral Version: IP67
    Cable Length 2 For Remote Version: 10 m Standard / Additional Meters on Request
    Certification OIML / Hygiene
  • Application
    • Food and Beverage Industry
    • Pharmaceutical Industry
    • Cooling Water Flow Measurement
    • Monitoring Chemical Dosing in Boiler System
    • HVAC and District Cooling System
    • Chemical Industry
    • Water and Wastewater Management
    • Thermal Plant
