- Reliable Performance, Easy Application
- Short Circuit And Reverse Voltage Protection
- Available in Both Display & W/o Display Option
- Gauge, Absolute And Sealed Gauge Optional
- Compact Size
- Cost Effective

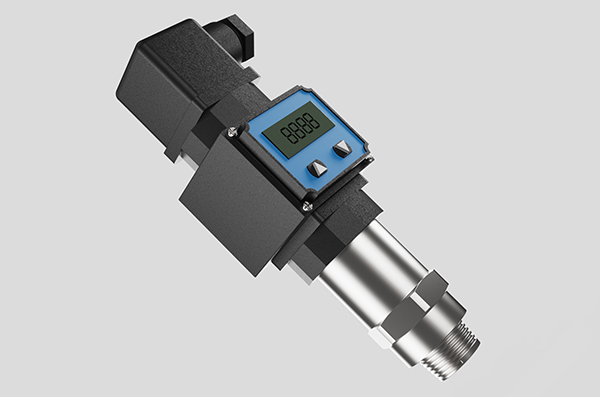

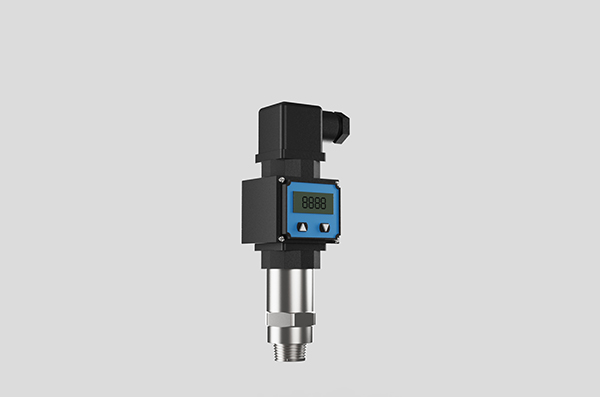

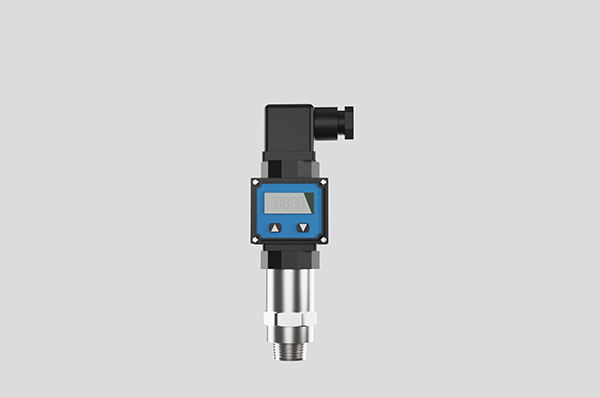

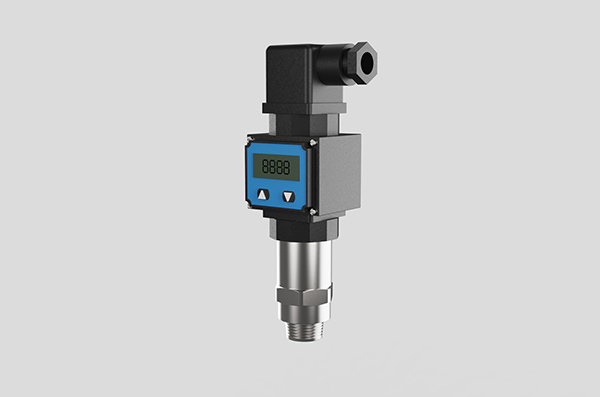

The 171 PT Pressure Transmitter is a piezo-resistive based pressure measurement device that provides a 4-20 mA current output proportional to pressure. Pressure is measured by using a specialized circuit board and a highly stable and reliable pressure sensor. The transmitter offers a high measurement accuracy of ±0.5% FS standard and ±0.25% FS on request. It supports a maximum measuring range of 30 bar. Featuring a two-wire configuration, it provides a standard 4–20 mA output signal. Its robust construction and dependable performance make it ideal for water and wastewater pressure measurement applications and industrial applications.
-
Features
-
Specification
Specification Details Operating Sensor Piezo-resistive Sensor Pressure Type Gauge Type or Absolute Type Measuring Range 0 to 2.5 kg/cm2, 0 to 10 kg/cm2, 0 to 16 kg/cm2, 0 to 20 kg/cm2, 0 to 30 kg/cm2
0 to 2.5 bar, 0 to 10 bar, 0 to 16 bar, 0 to 20 bar, 0 to 30 barMeasurement Media Liquid Water Turn Down Ratio 1:10 Display Version With Display or Without Display or Sealed Cable Accuracy ±0.5% of FS (Standard) or ±0.25% of FS (On Request) Power Supply 2-Wire 24 VDC @500Ω Cable Entry DIN43650 Plug Connector or M12 Connector or Sealed Cable Output 1 (Signal Output) 2-Wire 4-20mA @500Ω Transmitter Body SS316L or SS304 Plug Housing Plastic Pressure Port SS316L Diaphragm Stainless Steel SS316L Protection Class For With Display or Without Display – IP65, For Sealed Cable – IP68 Cable Length 2 m (For Sealed Cable Version only) Cable Diameter Ø5 mm Polyethylene Special Cable Cable Locking PG5 Cable Gland Air Venting Provided Ambient Temperature 0°C to 60°C -
Application
- Chemical Industry*
- Mechanical Manufacturing
- Hydraulic and Pneumatic Control
- Pipeline System
- Hydrology and Water Resources
-
