Liquids 114 MLS

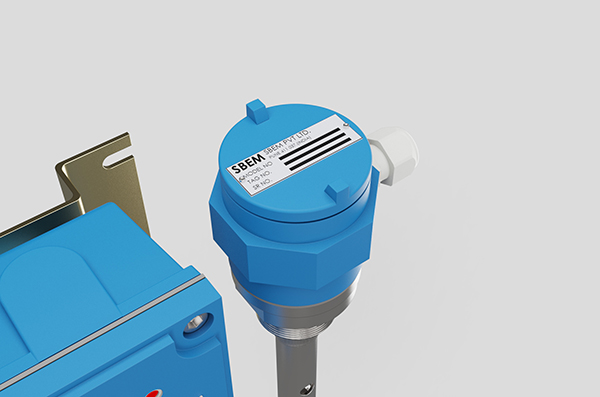

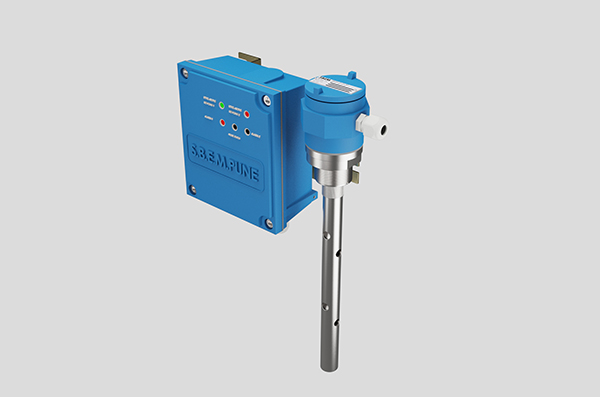

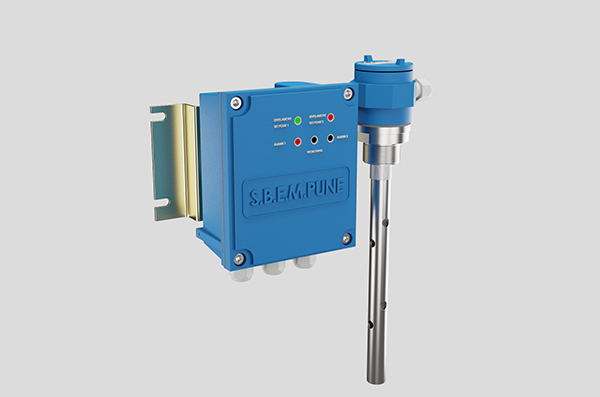

SBEM’s Capacitance Type Level Switch for Liquids – 114 MLS is a globally trusted solution, designed for high-performance level detection, and control in a wide range of liquid applications. This versatile and weatherproof device built with proven capacitance technology and enhanced by a microprocessor-based system, offers single or two-point switching. Ideal for industries such as thermal power, chemical processing, water treatment, and food & beverage, the 114 MLS effectively monitors both conductive and non-conductive liquids, including water, effluents, oils, acids, and petroleum products. It features surface or pipe mounting options, time delay controls, fail-safe settings, probe failure alarms (optional), and is housed in a robust IP-67-rated aluminium enclosure. Multiple electrode configurations are available, including PTFE sheathed rigid and flexible types, suitable for corrosive, non-corrosive, or pressurized environments. With global demand for reliable industrial automation, SBEM’s 114 MLS capacitance switch stands as a precise and durable solution for modern liquid level management.

  • Features
    • Microprocessor based Instrument.
    • Surface/Pipe mounting options.
    • One point or Two point Switch
    • Built inTime delay & probe failure alarm (optional).
  • Specification
    CONTROLLER UNIT
    Relay contacts 2 C/O, 5A @ 230VAC, Resistive
    Probe Failure Alarm 2 C/O, 5A @ 230VAC, Resistive (Optional)
    Function 1 – Single point level switch with adjustable time delay & with optional probe failure alarm.
    2 – Two point level switch with adjustable time delay.
    Fail safe feature DIP switch settable fail safe high (FSH) or fail safe low (FSL)
    Time delay 0 – 200 Sec
    Controls Potentiometer to set: Level Alarm, Time Delay
    DIP-For switch setting

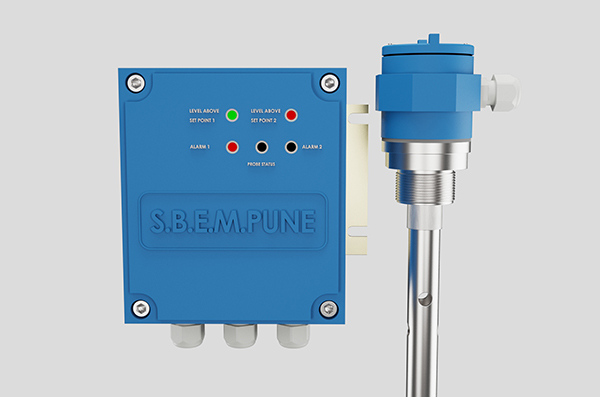

    Indications Red LED for Level Alarm
    Bi-Color LED for Level above set point
    Red LED for Probe Failure (Optional)
    Hysteresis Min. 20 mm (Ref. table)
    Sensitivity ± 0.5% (of probe output)
    Environmental conditions Temperature: -10°C to +60°C
    Relative Humidity: 0% to 95% (Non-condensing)
    Terminals Suitable for 1.5 sq. mm size conductor (Max) (Refer Note 6)
    Cable entries 1/2″ NPT(F), ¾” UNF (F)
    Location Suitable for installation in safe area.
    Enclosure Cast aluminum, Polyurethane painted, Weatherproof to IP-67
