- Battery Operated
- Wireless Connectivity
- Configurable Sending interval
- Event Based Trasnmission is Available
- Logging data Record is Available
- End to End (E2E) Data Encyption supported

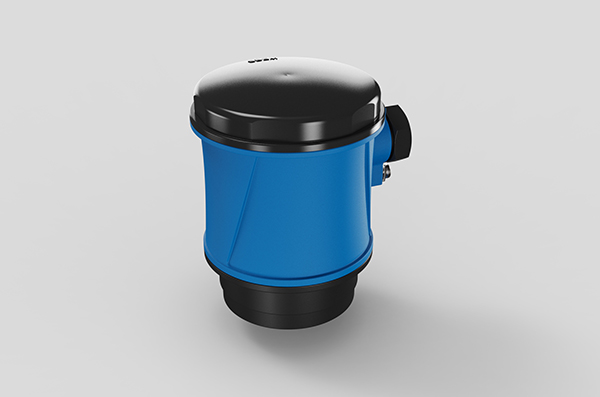

Introducing the IoT-enabled AquaWave 80G Battery-Operated Series – a cutting-edge solution for precise liquid level measurement across various process applications. Operating at 80 GHz and utilizing wireless radar technology, AquaWave ensures exceptional accuracy and reliability with a maximum range of 35 meters. Designed for 4G connectivity with 2G fallback, it offers seamless telemetry communication and integrates effortlessly into existing systems with minimal modification.
-
Features
-
Specification
Parameter Name Parameter Description Measuring Frequency 80GHz, W Band Measuring Ranges upto 35m Dead Band (mm) 150mm. Beam Angle 8° Accuracy ≤±0.1%FS Power Supply Integrated Lithium cells 2×3.6V (Replaceable) Battery Life *Up to 5 Years for 2G/4G Signal Output 4G with 2G Fallback Installation Method Flanged Enclosure Material Aluminium with PVC cap Antenna Material PBT (Polybutylene Terephthalate – Thermoplastic) Process Connection Threaded/Flanged Protection class IP67 & IP68 Process Temperature 0 to 60°C Process Pressure -1 to 2 Bar -
Application
- Water reservoirs
- WTP
- ETP and STP Plant
- Sewage and Wastewater Tanks
- Sea Water measurement
- Fresh Water Tanks
- Ballast Water Management
- Fresh Water Tanks
- Sugar Bins
- Food Grains and Edible Oil Tanks
-
