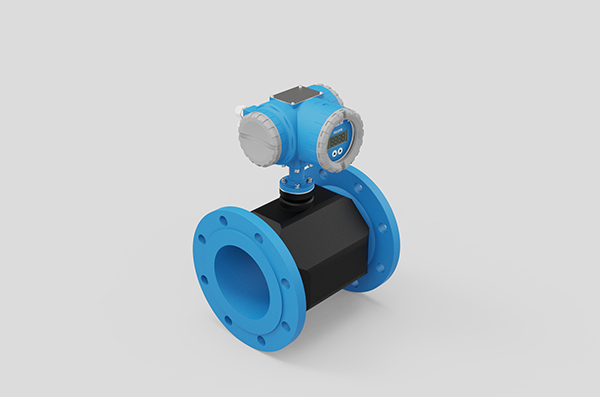

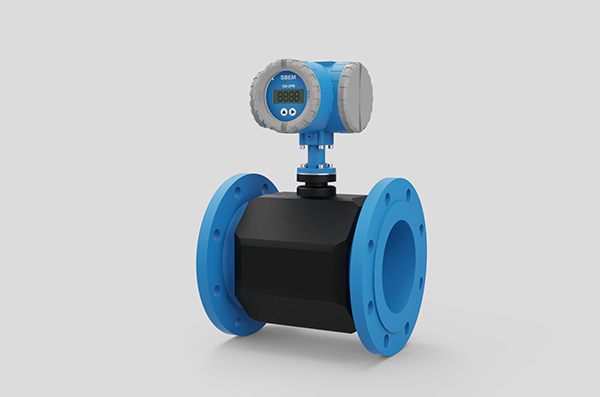

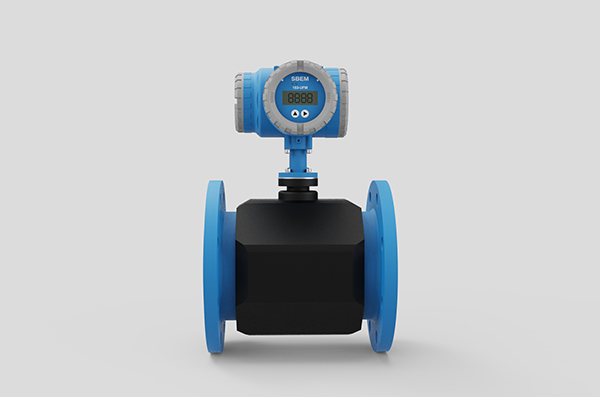

Parasonic 153 UIF

SBEM’s Parasonic 153 UIF Ultrasonic Flow Meter, Inline Type is a cutting-edge solution for accurate and reliable flow measurement of liquids in pipelines. Engineered for high-performance fluid monitoring, this inline ultrasonic flow meter uses transit-time differential technology to precisely measure flow velocity without disrupting fluid movement. Available in both 24VDC-powered and inbuilt battery versions, is ideal for remote and urban infrastructure. The Parasonic 153 UIF is compatible with carbon steel, SS304, and SS316 pipe materials, supporting a wide size range from DN32 to DN600. With features like GPRS, RS485, MODBUS RTU communication, IP67/IP68 ingress protection, and long battery life, is suited for applications, such as drinking water supply, water treatment plants, irrigation systems, HVAC, and industrial utilities. SBEM’s inline flow meter ensures optimal performance, innovative data communication, and efficient water resource management across global industries.

  • Features
    • Available in Battery as well as Powered
    • Telemetry Communication Enabled
    • Long Battery Life
    • Suitable for Remote area
    • Temperature Measurement
    • (BTU Energy Meter) Option available
  • Specification
    Parameter Name Parameter Description
    Line Size DN 32 to DN 600* (Higher Sizes available on request)
    Accuracy ±1% of Reading
    Power Supply 24VDC or 3.6 V lithium Inbuilt battery
    Battery Life 5 Years (Under Factory condition)
    Communication Output GSM/GPRS 4G with 2G fallback communication or RS485 Modbus RTU
    Output (For 24VDC Supply Model Only) 4-20mA DC for Flow rate or Pulse (Open Collector Type) for Totalized Flow
    Mobile / Configuration APP Interface Mobile / Parameter Configuration APP Interface via Bluetooth
    Display 8 digit Totalized Flow display, 5 digit instantaneous Flow display
    Data logging Available (on request)
    Measuring pipe Carbon steel / stainless steel
    Process Connections EN Standard PN6 / PN10 / PN16 Flange
    Ambient Conditions 0 to 60°C
    Humidity <80%RH
    Ingress Protection Wetted Sensor IP68
    Ingress Protection Integral Version IP67
  • Application
    • Drinking Water Supply
    • Water Treatment Plant (WTP)
    • Water Resource Management
    • Agriculture/ Irrigation
    • Overhead Tanks
    • HVAC(BTU Energy Meter)
