- Available in both integral and remote converter.
- Graphical Display for total energy as well as instantaneous power
- Display of chilled water, power temperature, and temperature difference (ΔT) available
- Choice of mounting either on inlet or on outlet as per site conditions
- Choice of Engg. Units : MBTU / KWhr/TR
- Storage can be viewed by scrolling keys
- Suitable for BMS System

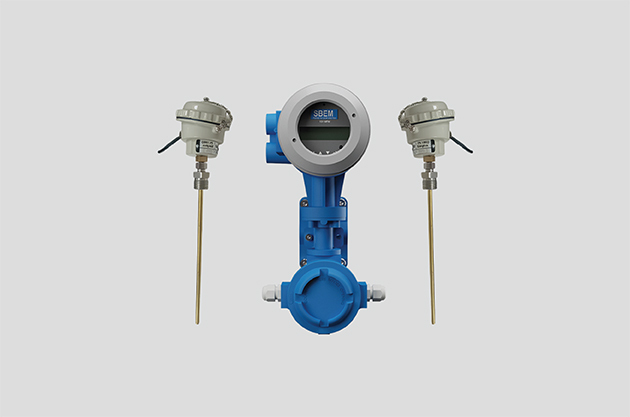

The Electromagnetic Energy Meter is a precision instrument designed for accurate measurement of thermal energy consumption in cooling systems. Combining advanced electromagnetic flow measurement technology with accurate temperature sensing, it continuously measures the flow rate and temperature difference between the supply and return lines to calculate the thermal energy transferred through the system. The Electromagnetic Energy Meter is ideally suited for HVAC systems, district cooling networks, commercial buildings, and industrial energy management applications, providing an efficient solution for energy monitoring, billing, and system optimization
- Features
- Specification
Specification Details Line Size 1 DN 15 to DN 1000 (Higher Sizes Contact HO) Temperature Measurement PT100 / PT1000
(2 Nos. Temperature Sensor – one at supply & another at return line)Flow Accuracy ±0.5% of Measured Reading Temp. Accuracy ±0.2°C Energy Accuracy 3 ±2% @ Full Scale (FS) Conductivity of measured liquid ≥20µS/cm Power Supply Standard: 85 to 265 VAC, 45 to 65 Hz or Optional: 24 VDC Model Types Integral Type or Remotely Type Display Graphical LCD Displayed Units Totalised Flow: m3, L
Instantaneous Flow: m3/ hr, m3/min, m3/sec, L/hr, L/min, L/sec,
Energy Unit: MBTU / kWh/Tr
Power Unit: MBTU/hr / KW ProgrammableCommunication Interface RS485 (Modbus RTU) or MODBUS TCP/IP / BACnet/IP Electrode Material Standard: SS316, Optional: SS316L / Haste Alloy C / Titanium / Tantalum Sensor Lining Rubber / Teflon (PTFE) / Hard Rubber / Neoprene / Polyurethane Measuring Tube Material Standard: SS304, Optional: SS316 Flow Sensor Housing Material Standard: CS, Optional: SS316 / SS304 Temperature Sensor Body Brass / SS304 – 6mm Dia. Thermowell Material SS316 / SS304 End Connection Flanged (ANSI / DIN / AWWA) Working Pressure 6 Kg/cm2 or 10 Kg/cm2 or 16 Kg/cm2 Ambient Temperature -10°C to 55°C Protection Class For Remote Type: Flow Sensor – IP67(Std) / IP68 (Optional) & Converter – IP67.
For Integral Type: IP67. For Temp. Sensor: IP67.Cable Length 2 For Remote Type 10m Standard / Additional meters on request. - Application
- Boiler and Heating Systems – Boiler efficiency calculations, Heat consumption monitoring, Energy balance studies
- BTU Billing -Sub metering Building
- HVAC Energy Monitoring – Chillers, Heat Exchanger, Building energy management systems (BMS)
- Industrial Cooling Water Systems – Cooling tower circulation, Process cooling loops, Heat exchanger monitoring, Machine cooling systems, Compressor cooling circuits.
- District Heating & District Cooling- BTU consumption measurement, Energy transfer monitoring.
- HVAC & Building Management Systems – Chilled water systems, Hot water circulation systems, Central air-conditioning plants, District cooling/heating systems, Energy billing between tenants or departments
