- Accurate Level measurement: The high frequency of ProWave80G radar enables accurate distance measurement, making it ideal for applications such as distance sensing and object tracking.
- False echo suppression: False echo suppression improves the accuracy of radar measurements by filtering out unwanted signals that may cause inaccuracies.
- Narrow Beam Angle: Provides larger range and supports smaller diameter vessels. The interface in the installation environment has less impact on the instrument, making it easier to install and more suitable for mixing conditions.
- Display: A radar display provides real-time visualization of detected objects and their attributes, aiding in navigation, surveillance, and safety, enhancing situational awareness and decision-making.
- IP Rating: IP67 Ingress Protection for radar ensures it’s sealed against dust, making it durable and reliable in outdoor and harsh environments, enhancing its longevity and performance.

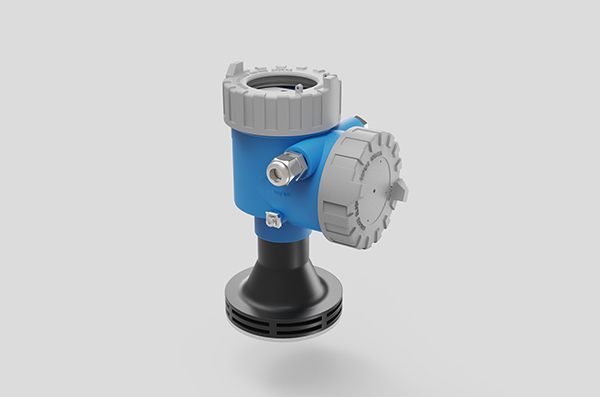

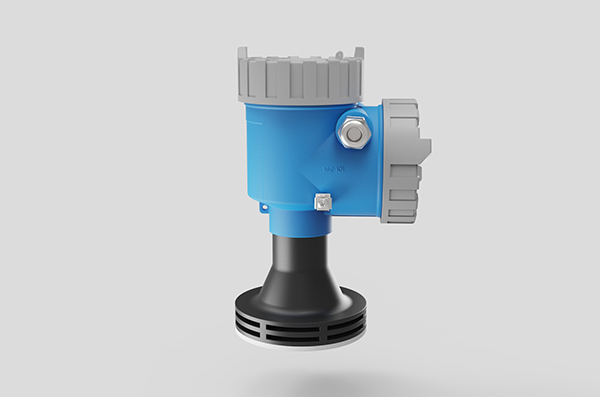

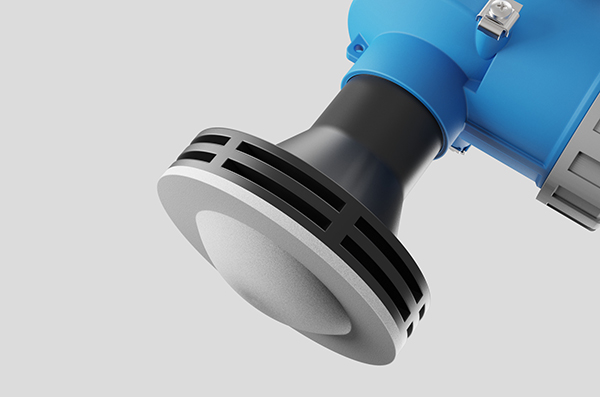

SBEM’s ProWave80G Series – Model 138 W84 is a compact and highly reliable radar level transmitter engineered for accurate measurement in slightly corrosive liquid-based industrial processes across global sectors such as chemicals, food, feed, sugar, and pharmaceuticals. Operating at 80 GHz using Frequency Modulated Continuous Wave (FMCW) radar technology, the 138 W84 provides a measuring range of up to 60 meters with a beam angle of 3°, ensuring precision even in narrow or small-diameter vessels. It supports a 2-wire, 24VDC power supply with an analog 4–20 mA output and optional HART communication for seamless integration into modern control systems. Built with an IP67-rated aluminium housing and a robust polypropylene (PP) antenna, the 138 W84 offers false echo suppression, front-key programming, and a 128×64 dot matrix display for real-time monitoring. It is available in two temperature variants up to 85°C and 200°C. This level transmitter enhances operational efficiency and reliability in demanding industrial environments.
-
Features
-
Specification
Specification Details Power Supply 24 VDC @30mA Updating Interval 2 Sec Application Liquid Measuring Ranges (m) 10m & 30m Dead Band (mm) 300 Beam Angle 3˚ Display 128 X 64 dot matrix display Accuracy ±2mm (Under Factory set condition) Installation Method Flanged Analog Output 2 Wire, 4-20mA @600Ω load Digital Output HART Communication (Optional) Device Configuration Programming through front 4 Keys False Echo Suppression Available Housing Enclosure Aluminium Antenna Material Polypropylene (PP) Process Connection Flanged Enclosure Protection Class IP67 Process Temperature 0 to 85°C Cable Entry 1) M20*1.5
2) ½” NPT -
Application
- Chemical industries
- Food
- Feed
- Pharmacy
-
