- Accurate Level measurement: The high frequency of ProWave80G radar enables accurate distance measurement, making it ideal for applications such as distance sensing and object tracking.
- False echo suppression: False echo suppression improves the accuracy of radar measurements by filtering out unwanted signals that may cause inaccuracies.
- Narrow Beam Angle: Provides larger range and supports smaller diameter vessels. The interface in the installation environment has less impact on the instrument, making it easier to install and more suitable for mixing conditions.
- Display: A radar display provides real-time visualization of detected objects and their attributes, aiding in navigation, surveillance, and safety, enhancing situational awareness and decision-making.
- Aiming device: Accurate positioning of Radar (Solid Version) on tank.
- IP Rating: IP67 Ingress Protection for radar ensures it’s sealed against dust, making it durable and reliable in outdoor and harsh environments, enhancing its longevity and performance.

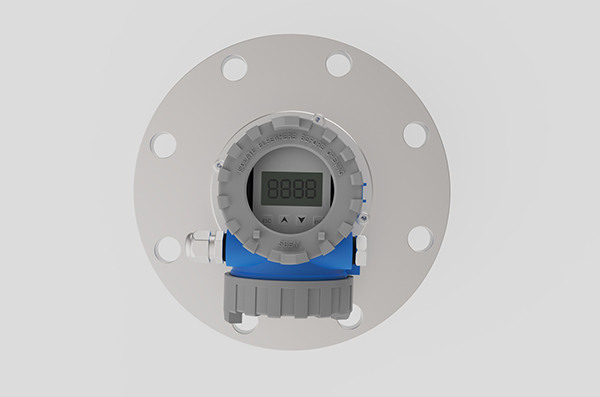

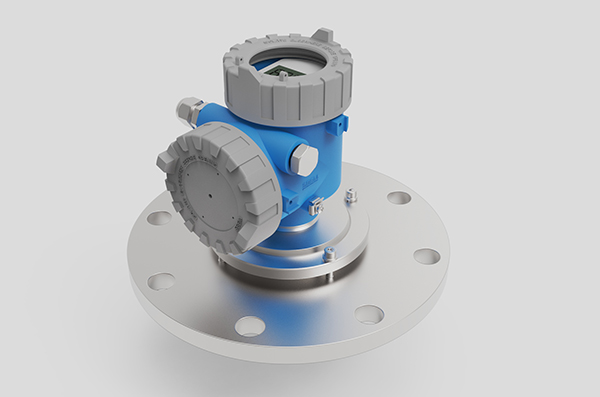

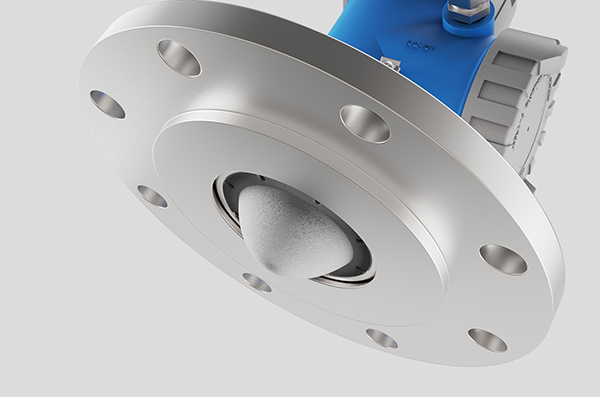

SBEM’s ProWave80G Series – Model 138 W85 is a high-performance radar level transmitter designed for global industries such as food processing, power, steel, and cement. Engineered with 80 GHz FMCW radar technology, it delivers unmatched precision in level measurement for both solids and liquids, with a maximum range of up to 60 meters for solids and 120 meters for liquids. The 138 W85 features a narrow 3° beam angle, ensuring optimal performance in challenging environments like silos, coal bunkers, fly ash storage, and edible oil tanks. With support for 2-wire 24 VDC systems, 4–20mA analog output, and optional HART communication, it integrates easily into existing setups. Housed in an IP67-rated aluminium enclosure with SS + PTFE antenna material, it offers false echo suppression, an optional aiming device for solid applications, and reliable performance across harsh industrial conditions. It is available in two temperature variants up to 85°C and 200°C. It features a high-temperature standoff design for consistent operation in demanding environments with universal flanged connections, this radar transmitter is ideal for global operations demanding durability, accuracy, and seamless process control.
-
Features
-
Specification
Specification Details Updating Interval 2 Sec Application Solid Measuring Ranges (m) Liquid 120m, Solid 60m
Liquid 60m, Solid 30mDead Band (mm) For Liquid 300 & Solid 800 Beam Angle 3˚ Accuracy ±2mm (Under Factory set condition) Installation Method Threaded & Flanged Analog Output 2 Wire, 4-20mA @600Ω Digital Output HART Communication (Optional) False Echo Suppression Available Housing Enclosure Aluminium Antenna Material SS + PTFE Process Connection Universal Flanged with Aiming Device
Universal Flanged without Aiming DeviceEnclosure Protection Class IP67 Cable Entry 1) PG11
2) ½” NPT -
Application
- Water Management
- Silos and Bins
- Cooling Towers and Treatment Plants
- Coal & Coke
- Cement Silo & Coke Silo
- Coal Bunker
- Fly Ash Silo
- Iron ore Silo
- Sugar Bins
- Food Grains and Edible Oil Tanks
-
